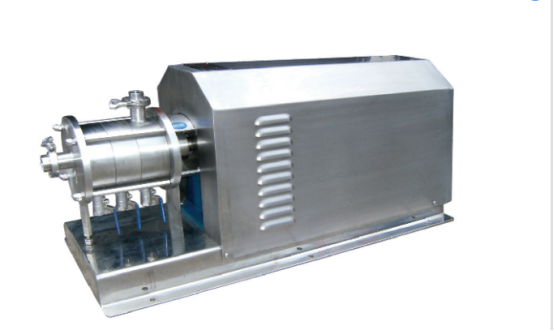

Operation Principle

Three sets of stators and rotors are equipped in

working cavity. Driving shaft in working cavity is an

arm, electrical motor and the shaft in bearing

cabinet can be connected by spring coupling to

improve the operation quality of driving shaft. Seal

form can be selected in different conditions. It is fit

for m iddl e - l a rge s c a l e on - l i n e con ti n uou s

production or circulated treatment production

process.

Principle of dynamics

1.Medium sucked in by strong axial suction force.

2.Single phase liquid, multi -phase liquid or

suspended particles are pumped in though

single-stage, double-stage or three-stage rotor

and stators.

3.No matter what medium property is, pump will

evenly shear all the liquid with high-intensity and

controllable force.

4.Shearing rate is constant, different sizes depends

on gear of rotor and stator and speed of rotor.

Optimized Combination Makes

The System Reach The Best State

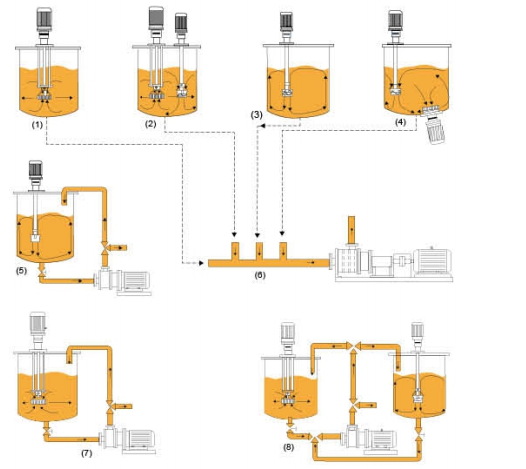

There are equipments in different forms and combine

in optimization for different flow processes, to make

the system reach the best state. Common process

flows are as below:

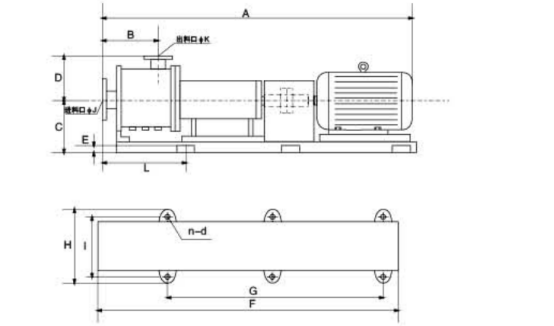

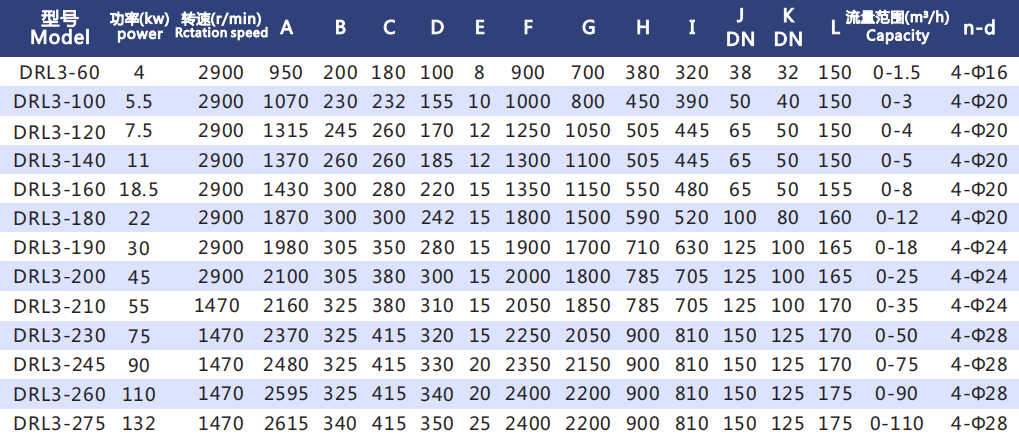

Main Parameter
